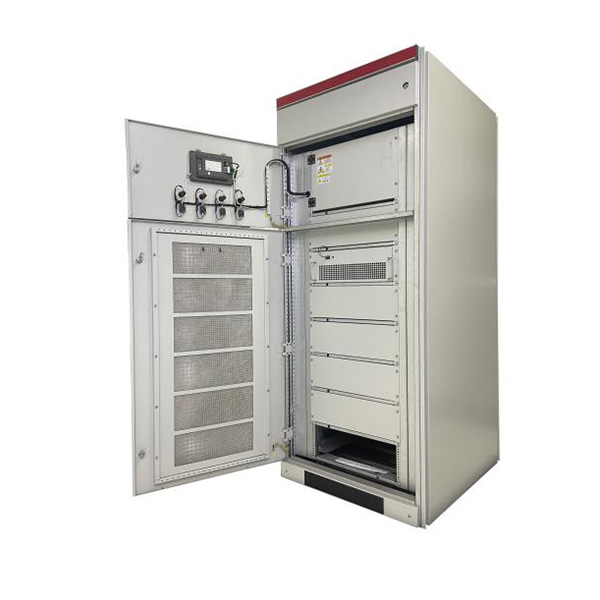

Static Var Generator

SEND INQUITY

Description
Advantages
Specification
Application
Recommend

Wt-svg, also known as static var generator (SVG) or static synchronous compensator (STATCOM), is a device that uses a self-commutating power electronic bridge converter to compensate for reactive power in an electrical power grid. It works by adjusting the amplitude and phase of the output voltage from the bridge circuit in real time or by directly controlling the current on the AC side of the bridge circuit. This allows the Wt-svg to absorb or emit reactive power as needed, helping to regulate voltage and improve power quality.

Quick Information

Cooling method: Smart air cooling
Noise :<70dB
Working frequency:50/60HZ +-5HZ
Operating frequency:21.6KHZ

Product Description

Wt-svg, also known as static var generator (SVG) or static synchronous compensator (STATCOM), is a device that uses a self-commutating power electronic bridge converter to compensate for reactive power in an electrical power grid. It works by adjusting the amplitude and phase of the output voltage from the bridge circuit in real time, or by directly controlling the current on the AC side of the bridge circuit. This allows the Wt-svg to absorb or emit reactive power as needed, helping to regulate voltage and improve power quality.

Advantages

Features: Static Var Generator

1. Wide compensation range: It has a wide compensation range of (+1)~(-1), which means it can effectively compensate for a wide range of reactive power fluctuations. This makes it a versatile device that can be used in various applications.

2. Fast response speed: It has a fast response speed, with a full compensation response speed of ≤10ms. This means that it can quickly react to changes in reactive power demand, which helps to maintain voltage stability and improve power quality.

3. Low-order harmonic compensation capability: Wt-svg can compensate for low-order harmonics up to the 13th harmonic. This helps reduce harmonic distortion in the power grid, improving the efficiency of power transmission and distribution.

4. Phase unbalance compensation capability: It can compensate for phase unbalance in the power grid. This helps to ensure that the voltage on all three steps is equal, which is important for the safe and reliable operation of electrical equipment.

5. Parallel access system: Static Var Generator can operate in parallel with other Wt-svg devices. This allows for a scalable and flexible solution to reactive power compensation needs.

6. User-friendly operating system: Wt-svg has a user-friendly operating system that is simple and easy to understand. This makes it easy for operators to configure and maintain the device.

Specification

Project	Product Specifications	5kvar	10kvar	15kvar	20kvar	25kvar	30kvar	35kvar	50kvar	75kvar	100kvar
Product parameters	Operating Voltage V	400±20% or 220 ±15%
	working frequency	50/60HZ +-5HZ
	System structure	Three-phase three-wire, three-phase four-wire, two-phase three wire, or other type
	Current sampling	5A (CT:100/5~10000/5)
	Current sampling location	Load side/grid side optional
	circuit topology	three-level
	Number of units that can be connected in parallel	unlimited
	operating frequency	21.6KHZ
	cooling method	Smart air cooling
Technical performance	Filter range	2~13 times (50% of rated current)
	Reactive power compensation	-100%~+100% power factor can be set
	Three-phase unbalance	100% unbalance fully compensated
	Overload protection	support
	power factor	-1~+1
	Instantaneous response time	< 100 μs
	full response time	<10ms
	noise	<70dB
	Protective function	Perfect protection for overvoltage/undervoltage, abnormal frequency, overtemperature, overcurrent, short circuit, phase loss, DC bus overvoltage/undervoltage, IGBT fault, etc., with system self-diagnosis function and fault recording function。
Communication monitoring	extensions	10-channel TSC interface, can be mixed with TSC/TSF
	Communication Interface	RS485, network port
	Protocol	Electrical protocol, Modbus protocol, TCP/IP
	PC software	Yes, all parameters can be set by the host computer
	UI	3/7 inch touch screen
	Display information	Grid parameters such as voltage, current, power and harmonics
	monitor	Support independent monitoring /centralized monitoring of each module
	error alarm	Yes, up to 500 alarm messages can be recorded
Use environment	ambient temperature	-10 ℃ ~+45 ℃
	stored temperature	-40 ℃ ~ + 65 ℃ _ _
	Relative humidity	max , no condensation
	Altitude	Below 1500m, the power is reduced by 1% for every additional 100m
	Protection class	IP20 higher protection level can be customized
Mechanical properties	Installation method	Wall Mount / Rack / Complete Machine
	Line entry	rear entry /top entry

Rack type	Dimensions (mm) WHD	5kvar	10kvar	15kvar	20kvar	25kvar	30kvar	35kvar	50kvar	75kvar	100kvar
	Dimensions (mm) WHD	246110327			26688365	415170580			570200580	570240616	570270670
	Weight ( kg )	5.20000			8.8	22			38	46	70
Wall mount	Dimensions (mm)	210350130			23040088	381174623			506204623	506244653	506274710
Wall mount	Weight ( kg )	5.2			8.8	22			38	46	70

Application

Applications of Wt-svg:

Transmission Line

Transmission line compensation: It can compensate for reactive power losses in transmission lines. This helps to improve voltage stability and reduce power losses.

Distribution System

Distribution system compensation: It can compensate for reactive power fluctuations in distribution systems. This helps to improve voltage regulation and reduce flicker.

Wind Farm

Wind farm integration: Wt-svg can integrate wind farms into the power grid. This is because wind farms can generate reactive and active power. It can help to compensate for the reactive power fluctuations caused by wind farms.

Data Center

Data centre applications: These can be used to improve the power quality in data centres. This is because data centres are sensitive to voltage fluctuations and power outages.
