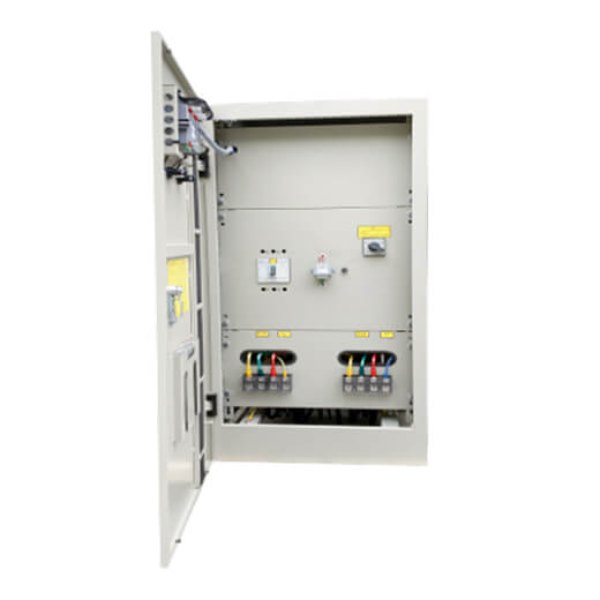

Compensation AC Industrial Voltage Stabilizer / Servo Motor Controlled AVR
In industrial settings, maintaining stable voltage is crucial for ensuring the optimal performance and longevity of sensitive equipment. The Compensation AC Industrial Voltage Stabilizer / Servo Motor Controlled AVR is a sophisticated device designed to address the challenges of voltage fluctuations and provide a consistent, reliable power supply to industrial applications.
- Model NO.:SBW/DBW
- Rated Capacity:10kVA—3600kVA
- Working Frequency:50Hz / 60Hz
- Noise:55db
Description
Compensation AC industrial voltage stabilizer / Servo motor controlled AVR:
Model: SBW (three phase), DBW (single phase)

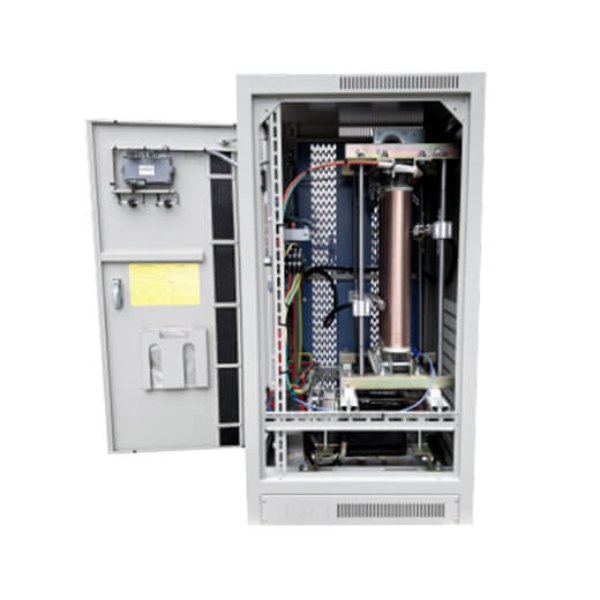

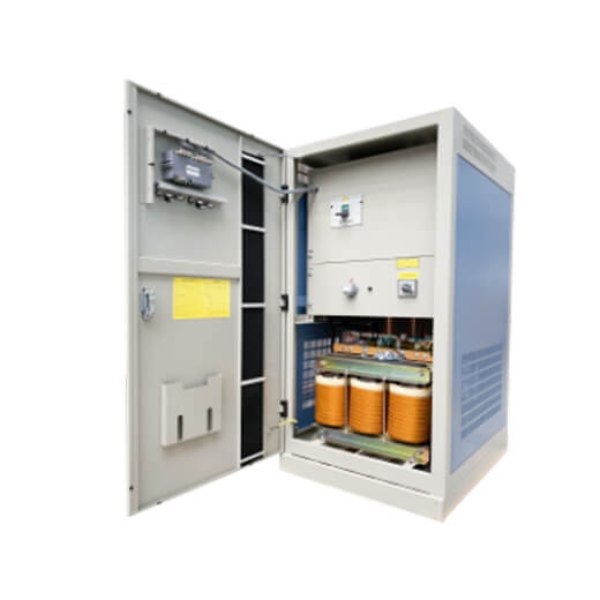

A voltage regulator, also known as an automatic voltage stabilizer (AVR), is a device that maintains a consistent output voltage despite fluctuations in input voltage or load conditions. It comprises three main components: a voltage regulating circuit, a control circuit, and a servo motor.
When the input voltage or load changes, the control circuit continuously monitors the voltage level, compares it to a reference voltage, and amplifies the difference. This signal is then used to drive the servo motor, which adjusts the position of the carbon brush in the voltage regulating circuit. By automatically altering the coil turn ratio within the regulator, the output voltage is effectively stabilized.
Advantages
-

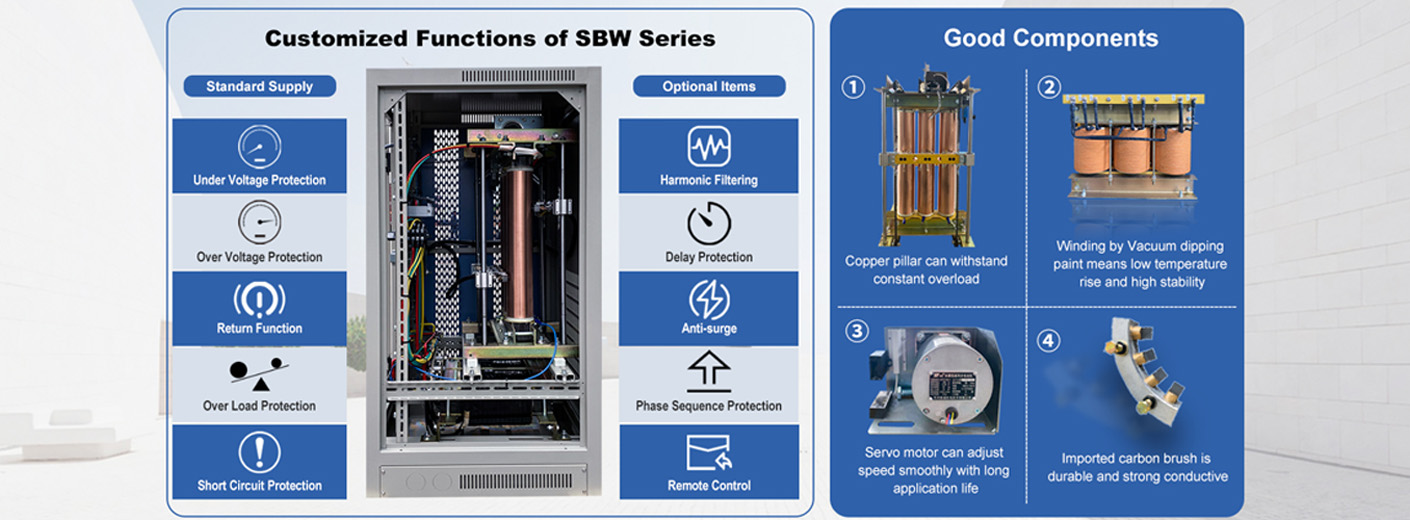

Wide Voltage Regulation Range: Effectively handles significant input voltage fluctuations, ensuring stable output voltage even under challenging conditions.
-
High Regulation Accuracy: Delivers precise voltage regulation, maintaining output voltage within a narrow range to meet the demanding requirements of industrial equipment.
-
Fast Response Time: Responds promptly to changes in input voltage, preventing voltage fluctuations from impacting connected equipment.
-
Servo Motor Controlled AVR: Utilizes a servo motor-controlled automatic voltage regulator (AVR) to achieve precise and responsive voltage regulation.
-
Robust Construction: Engineered to withstand the rigors of industrial environments, ensuring long-term reliability and durability.
-
Comprehensive Protection Features: Incorporates overvoltage, undervoltage, overload, phase loss, and short circuit protection to safeguard connected equipment.
Specification
| Specification | Tech. data | ||
| Product name | Compensating AC Stabilizer / Servo-moter Controlled Voltage Regulator | ||
| Model NO. | SBW/DBW | ||
| Rated Capacity | 10kVA—3600kVA | ||
| Wire system | 3 phase 4 wires | ||
| Input voltage | Input three phase 380V（±20％） 304V-456V | ||
| Output voltage | three phase 380V（leave factory set），380V±3% | ||
| Working frequency | 50Hz / 60Hz | ||
| Constant Voltage Precision | ±（1% ~ 5%）adjustable | ||
| Regulating mode | separate phase regulating / simultaneous phase regulating | ||
| Noise | 55db | ||
| Insulation class | F | ||
| Operation time | ≥100,000 hours | ||
| Protection class | IP20 | ||
| Voltage withstanding | 2000V, 1 min. not broken | ||
| Wave deformation | ≤0.1% | ||
| Efficiency | ≥98% | ||
| Insulation resistance | ≥2MΩ | ||
| Response time | ≤100ms | ||
| Time for stabilizing | When the input voltage jumps 10% relative to the rated value, the stabilization time is less than 1.5S | ||
| Packing | Polywood packing | ||
| Electrical safety | CE | ||
| Altitude | < 1000m | ||
| Relative humidity | < 90% | ||
| Ambient temperature | -15°C to +45 °C | ||
| Main function | Over-voltage and under-voltage protection | When output voltage over or under rated voltage value, equipment will automatically trip | |
| Over current protection | When the over-current exceeds the rated value, the input will be cut off automatically | ||
| Mechanical protection | When the voltage regulating operation exceeds the region, the adjustment will be automatically terminated | ||
| Overload protection | Once overload, it will automatically cut off the power； | ||
| Short circuit protection | When the load short circuit, it will automatically cut off the power supply; | ||
| Bypass function | Can be manually switched to mains supply the during the maintenance | ||
| Return function | When the sampling voltage exceeds the set value, the power supply automatically returns to normal | ||
| Display function | LCD display | ||
| Optional function, extra charge | Phase sequence protection | when phase sequence is reserved or less, it will automatically protect | |
| anti-surge performance | the input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs-100μs, such as lightning induction on the equip. | ||
| wave filtering performance | Equipped with a sensitive tracking filter device at the input, which can effectively filter and absorb the pollution signals generated by the inductive load disconnection and the electric field and magnetic field on the line, and strictly control the impact of harmonics on digital equipment; | ||
| remote communication | RS485 communication interface (communication protocol provided) | ||
| Product characteristics | true effective value sampling | High accuracy, good sensitivity, good measurement rate and frequency characteristics, high input impedance, low output impedance, wide power supply range, low power consumption | |
| Vacuum dipping paint | high insulation strength, good mechanical properties, low noise, corrosion resistance and long service life | ||
| control chip | The MCU control chip adopts the original imported industrial-grade 32-bit interface ARM chip produced by STMicroelectronics, which has the advantages of strong anti-interference ability, high computing speed, and high-precision AD acquisition. Digital circuit control, reliable and intelligent operation. | ||
Case

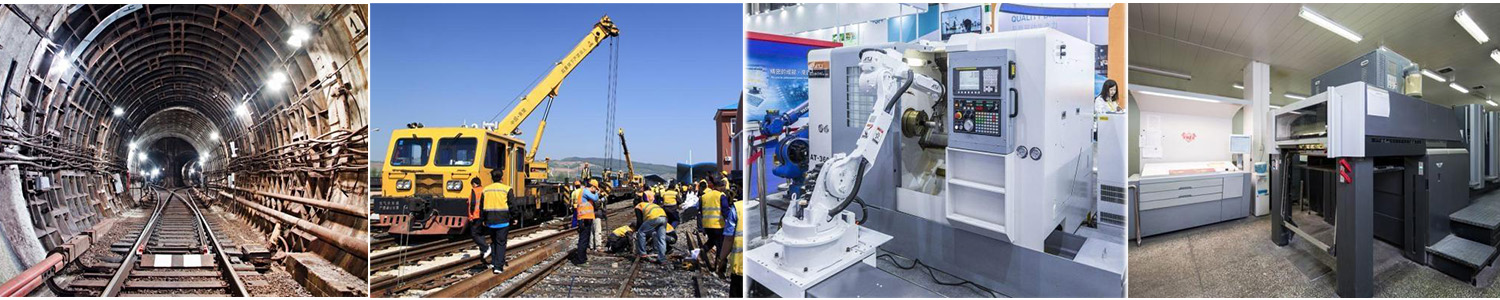

Industrial and mining enterprises, oil fields, railways, construction sites, schools, hospitals, posts and telecommunications, hotels, scientific research and other departments of electronic computers, precision machine tools, computed tomography (CT), precision instruments, test devices, elevator lighting, imported equipment and production lines, etc.
Application
Voltage regulators are particularly suitable for end-users connected to low-voltage distribution networks with unstable or fluctuating voltage supply and for electrical equipment with large load variations. They are especially effective in stabilizing voltage in environments with stringent requirements for power grid waveform integrity. High-power compensated power regulators can be connected to thermal power grids, hydraulic power systems, and small generators.
- Oil and Gas Industry: Compensation AC Industrial Voltage Stabilizers / Servo Motor Controlled AVR protect equipment from voltage fluctuations that could cause malfunctions, sparks, or fires, ensuring the safety and productivity of oil and gas operations.
- Transportation Infrastructure: Compensation AC Industrial Voltage Stabilizers / Servo Motor Controlled AVR protect signaling systems, communication networks, and power supply systems from voltage fluctuations, preventing disruptions to transportation services and ensuring passenger safety.
- Telecommunications and Broadcasting: Telecommunications and broadcasting infrastructure, including radio and television stations, mobile phone networks, and internet service providers, require stable voltage for uninterrupted transmission and reception of signals.
- Agriculture and Horticulture: In modern agricultural and horticultural practices, automated irrigation systems, climate control systems, and precision farming equipment rely on stable voltage for optimal operation.
