Features of laminated busbars:

High current density: Laminated busbars can carry a higher current density than traditional busbars, which makes them more efficient and space-saving.

Low inductance: Laminated busbars have low inductance, which means that they can reduce voltage drop and improve power quality.

Good flexibility: Laminated busbars are more flexible than traditional busbars, which makes them easier to install and route.

Corrosion resistance: Laminated busbars resist corrosion, making them suitable for use in harsh environments.

High strength-to-weight ratio: Laminated busbars have a high strength-to-weight ratio, which makes them lightweight but strong.

Applications of Laminated busbars

Laminated busbars are used in a variety of applications, including:

Power distribution: Laminated busbars distribute power in various electrical systems, including switchgear, panelboards, and motor control centres. They are particularly well-suited for applications where high current density, low inductance, and good flexibility are required.

Power conversion: Laminated busbars, such as inverters and converters, are used in power conversion applications. They are used to connect these devices’ input and output terminals, and they help reduce voltage drop and improve power quality.

Transportation: Laminated busbars are used in various transportation applications, including electric vehicles, hybrid vehicles, and locomotives. They connect the battery, motor, and other components of these vehicles, and they help reduce weight and improve efficiency.

Renewable energy: Laminated busbars are used in renewable energy applications, such as solar and wind power systems. They are used to connect solar panels or wind turbines to the grid and help reduce losses and improve efficiency.

Key Features:

Voltage Regulation: Our Power Quality Products provide consistent voltage levels, ensuring a stable power supply to your sensitive equipment. This feature prevents the damaging effects of overvoltage and undervoltage, extending the lifespan of your devices.

Harmonic Filtering: Say goodbye to disruptive harmonics that can compromise the efficiency of your electrical systems. Our products are equipped with advanced harmonic filtering technology, reducing harmonic distortion and maintaining a clean power waveform.

Surge Protection: Guard your equipment against sudden power surges with our robust surge protection capabilities. Our products are designed to absorb and dissipate excess energy, preventing potential damage and downtime.

Power Factor Correction: Enhance the power factor of your electrical system, optimizing energy efficiency. Our Power Quality Products actively correct power factor imbalances, reducing energy consumption and minimizing utility costs.

Real-time Monitoring: Stay in control with real-time monitoring features that provide comprehensive insights into your power quality. Identify and address potential issues before they escalate, ensuring the continuous operation of your critical systems.

Modular Design: Our products boast a modular design for easy scalability and customization. Tailor the solution to meet the specific needs of your facility, whether it’s a small business or a large industrial operation.

User-Friendly Interface: With an intuitive user interface, managing and configuring our Power Quality Products is a breeze. Access important data, set parameters, and receive alerts effortlessly, putting you in command of your electrical infrastructure.

Benefits:

Equipment Reliability: Ensure the longevity of your valuable equipment by providing a clean and stable power supply.

Reduced Downtime: Minimize the risk of downtime caused by power quality issues, saving you time and resources.

Energy Efficiency: Improve energy efficiency and reduce utility costs by optimizing power factor and minimizing waste.

Compliance: Meet industry standards and regulations with a power quality solution that exceeds expectations.

Home / Products / Energy Storage Products / PCS / PCS (Power Conversion System)

PCS (Power Conversion System)

SEND INQUITY

Description
Advantages
Specification
Application
Recommend

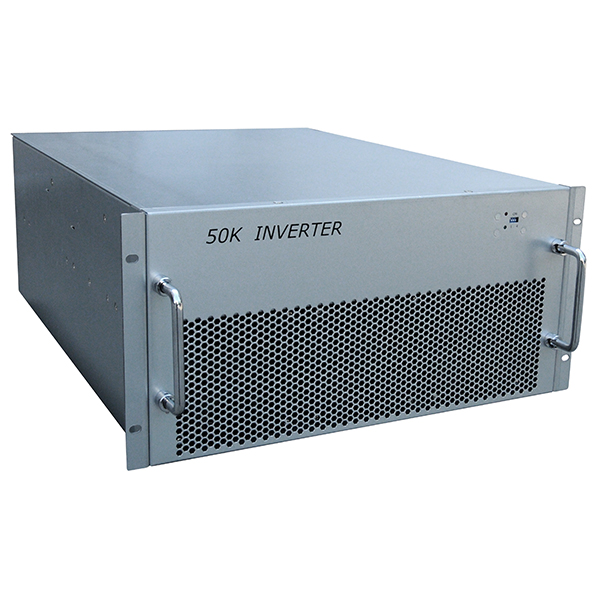

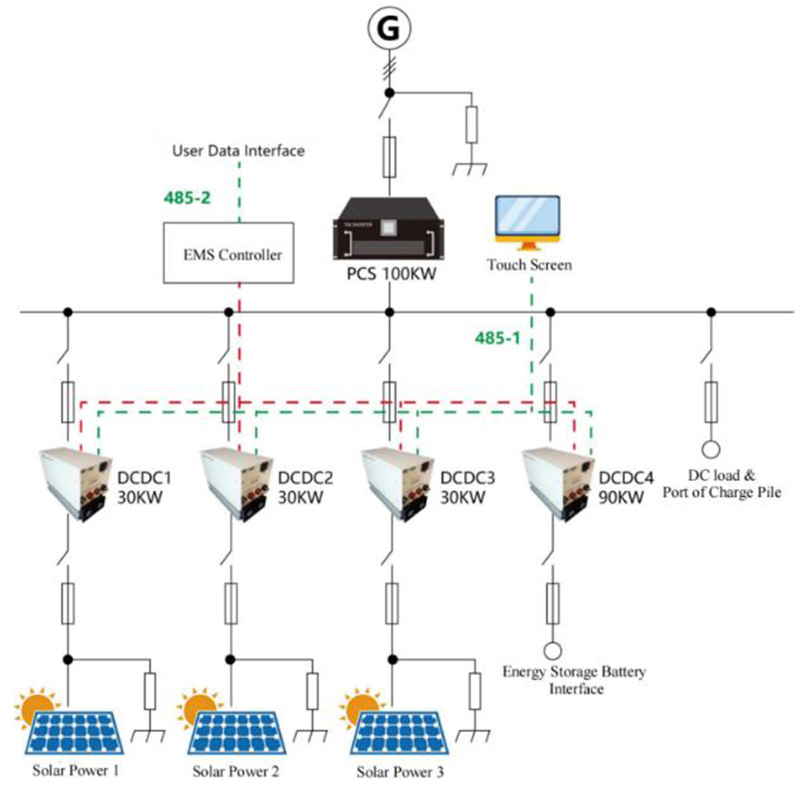

Energy storage converter, also known as two-way energy storage inverter, English name PCS (Power Conversion System), used in AC coupled energy storage systems such as grid-connected energy storage and micro-grid energy storage, connecting the battery pack and the grid (or load) between, is a device to achieve two-way conversion of electric energy. It can convert the DC current of the battery into alternating current and send it to the power grid or to the AC load. The alternating current of the power grid can also be rectified into direct current to charge the battery.

Quick Information

Storage temperature:-20℃ ~ 70℃
Max. Efficiency:98.5% @ full-load
Cabinet dimension:440*220*600mm
Weight:40kg

Description

At the heart of AC coupled energy storage systems, the Energy Storage Converter, also recognized as the two-way energy storage inverter or PCS (Power Conversion System), serves as the linchpin connecting battery packs and the grid (or load). Its primary function is to enable the versatile conversion of electric energy in both directions. This entails converting DC from the battery into AC for grid supply or loads, and reciprocally rectifying AC from the power grid into DC for efficient battery charging.

Advantages and Characteristics:

Embracing a compact and high-powered approach, our three-level design ensures efficiency with a minimized footprint, catering to high power density requirements.
Experience a harmonious energy flow with our system, boasting low harmonics and exceptional efficiency, promising an environmentally friendly and power-efficient operation.
Seamlessly toggle between connected and off-grid modes, providing you with the flexibility to adapt to varying energy needs and ensuring a reliable power supply at all times.
Versatility at its core – our system supports three-phase and operates effortlessly with 100% unbalanced loads, showcasing adaptability to diverse operational scenarios.
Stability redefined – on the DC side, our system introduces a stable bus function, guaranteeing a consistent and reliable power distribution.
Tailor your power distribution with ease – on the AC side, our system supports the PQ mode, allowing for precision in operation and catering to specific power quality requirements.
Simplify, integrate, and maintain – our modular design facilitates multi-machine parallel operation, streamlining system integration, operation, and maintenance. Coupled with a comprehensive protection function, you can trust in the longevity and robustness of your power system.

Specification

Datas Sheet for 50kW PCS (for your reference)

No.	Technical Parameters	WLD-PCS50K
1.	DC terminal	Voltage variation range	DC 650V ~ 850V
2.	DC terminal	Max. DC value	75A
3.	AC connect to grid	Output line system	3W+N / 3W
4.		Rated power	50KW
5.		Rated voltage	AC 400V
6.		Rated current	75A
7.		Voltage variation range	-10% ~ +10%
8.		Rated frequency	50Hz
9.		Frequency range	47 ~ 51.5Hz
10.		Power factor	0.99(lead) ~ 0.99(lag)
11.		Total current distortion	< 3% (rated power)
12.	AC off-network	Output line system	3W+N/ 3W
13.		Rated power	50KW
14.		Rated voltage	400V
15.		Rated frequency	50Hz
16.		Rated current	75A
17.		Voltage accuracy	1%
18.		Output voltage harmonics	3% @ linear full-load
19.		Dynamic response	50 ~ 100ms
20.		Unbalanced load	100%
21.		Over-load	≤ 105%， long-term operation
22.			(105,110), operation ≥ 10mins
23.			≥ 110%, stop operating
24.	Situation	Working temperature	-20℃ ~ 50℃, (need to increase capacity as exceed 45℃)
25.		Storage temperature	-20℃ ~ 70℃
26.		Relative humidity	0%RH ~ 95%RH, no condensing
27.		Altitude	As 45℃ and exceed 300m, need to increase capacity
28.		Noise	< 75dB
29.	Communication and management	Communication interface	CAN / RS 485
30.	Communication and management	Communication protocol	CAN / ModBus RTU
31.	IP grade	IP 20 ( 3-level defense inside)
32.	Cooling type	Forced air cooling with intelligent and regulated fan
33.	Max. Efficiency	98.5% @ full-load
34.	Cabinet dimension (WHDmm)	440220600
35.	Weight	40kg
