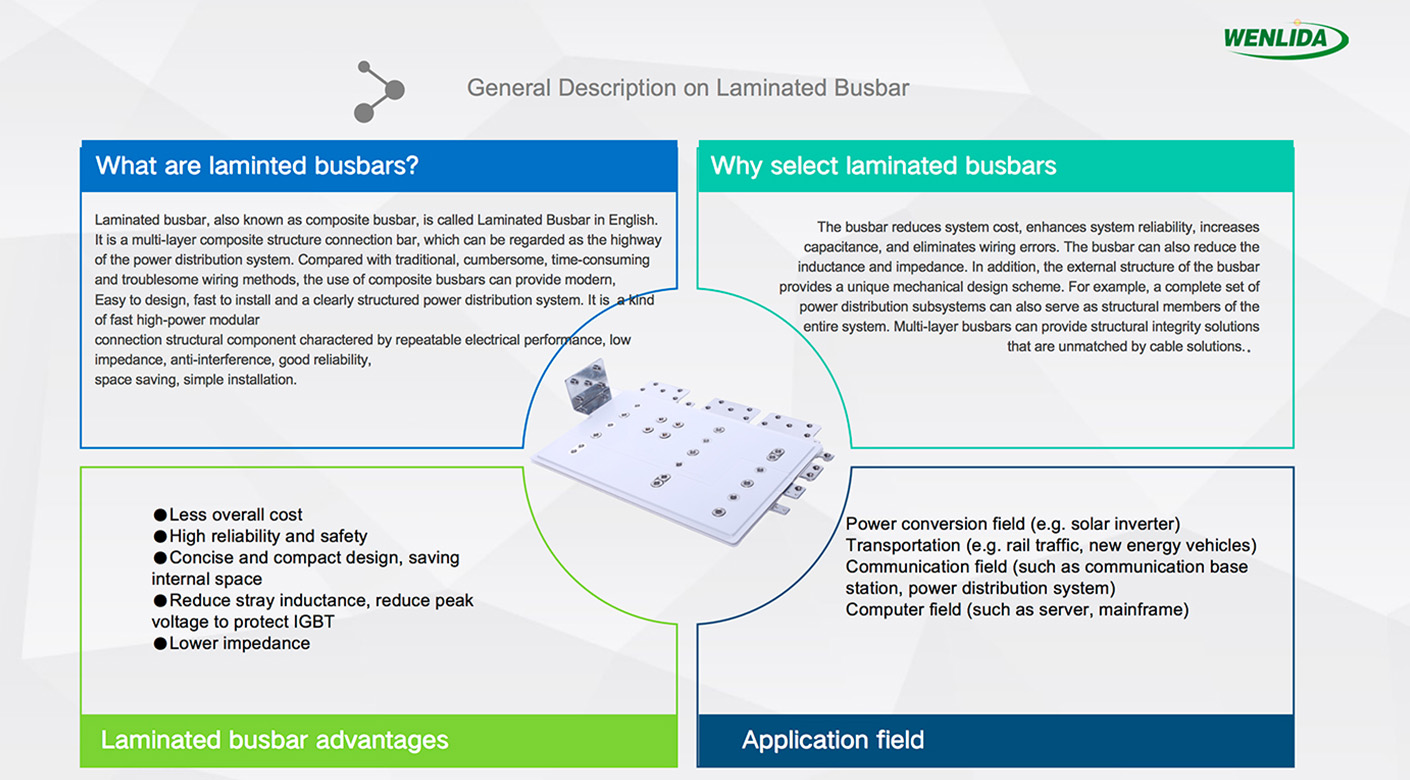

Laminated busbar, also known as composite busbar, is called Laminated Busbar in English. It is a multi-layer composite structure connection bar, which can be regarded as the highway of the power distribution system. Compared with traditional, cumbersome, time-consuming and troublesome wiring methods, the use of composite busbars can provide modern, easy-to-design, fast to install and clearly structured power distribution system. It is a kind of fast high-power modular connection structural component characterized by repeatable electrical performance, low impedance, anti-interference, good reliability, space saving, simple installation.

Quick Information

Insulation resistance:20M Ω DC/1000V
Parasitic inductance:15nH/m
Temperature rise:≤30K
Working temperature:-40~105℃

Product Description

A laminated copper busbar for rail traffic refers to a specialized component used in the electrical systems of rail vehicles. It is a conductive bar made of copper that is constructed by layering multiple thin sheets or foils of copper together, with insulating layers in between. This construction is referred to as “laminated” and is designed to improve the performance and reliability of the busbar.

The laminated copper busbar serves as a crucial part of the electrical power distribution system in rail vehicles. It facilitates the efficient and safe transmission of electrical power from the power source to various components within the train, such as traction motors, lighting systems, control systems, and other electrical devices.

Laminated Busbar for Rail Traffic description

Advantages

Laminated copper busbars are designed to handle high currents efficiently due to copper’s excellent electrical conductivity. The laminated structure helps in managing the heat generated during the flow of large currents.
The laminated construction allows for a compact and integrated structure. Multiple layers of copper with insulating materials in between form a cohesive unit that is both mechanically strong and electrically efficient.
Laminated busbars can be designed with flexibility in mind, allowing for various input and output points. This flexibility makes them adaptable to different configurations and requirements in electrical systems.
The design of laminated busbars enables them to occupy less space while still efficiently conducting large currents. This is particularly important in applications where space is limited, such as in the confined compartments of rail vehicles.
Laminated busbars often require less assembly time compared to traditional busbar designs. The pre-manufactured laminated units can be installed more quickly, reducing overall assembly time and labor costs.
Laminated busbars can be designed to include signal acquisition points at various locations. This feature allows for the monitoring and acquisition of signals at different points along the busbar, contributing to system diagnostics, control, and monitoring in complex electrical systems.

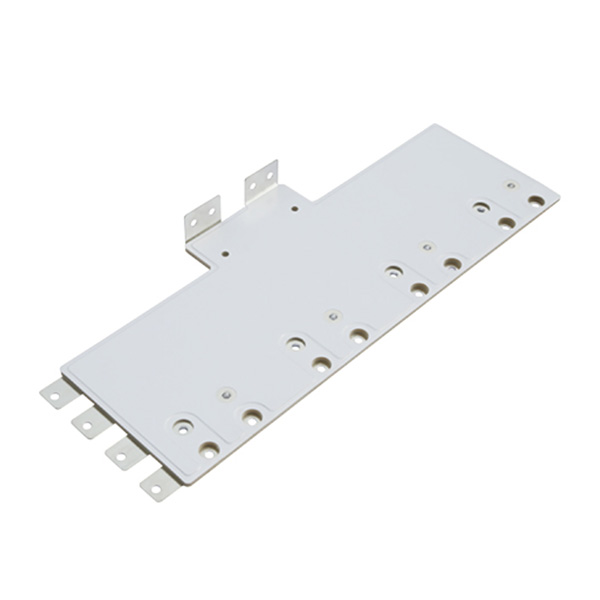

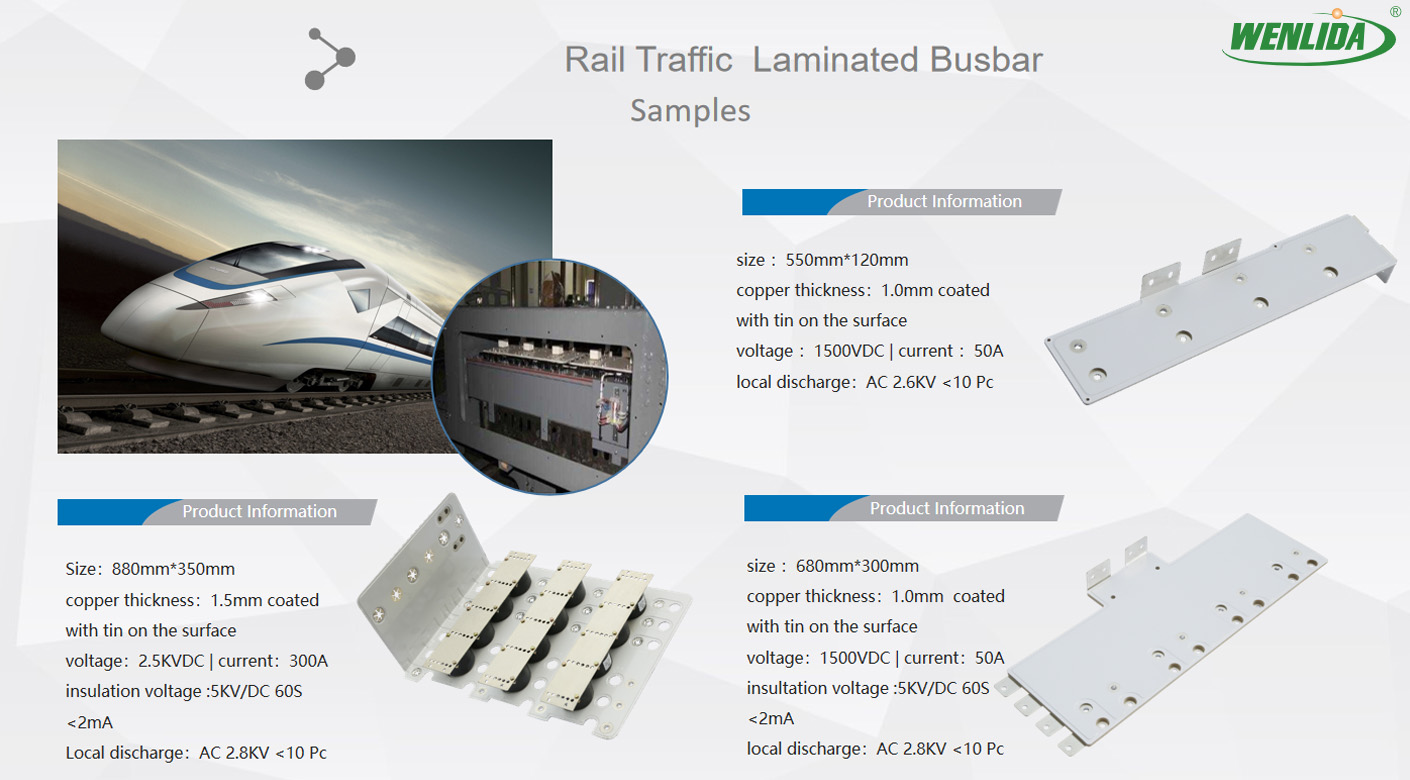

Laminated Busbar for Rail Traffic sample

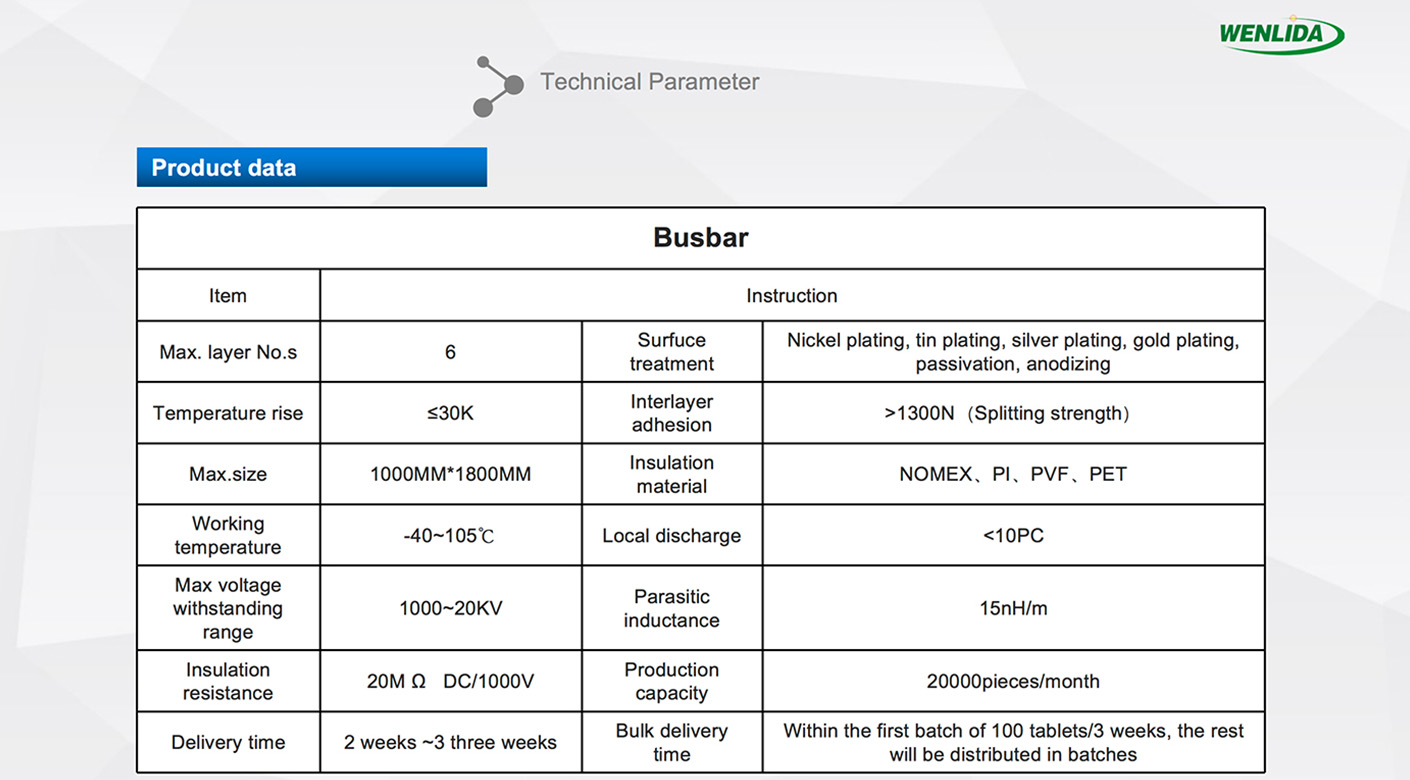

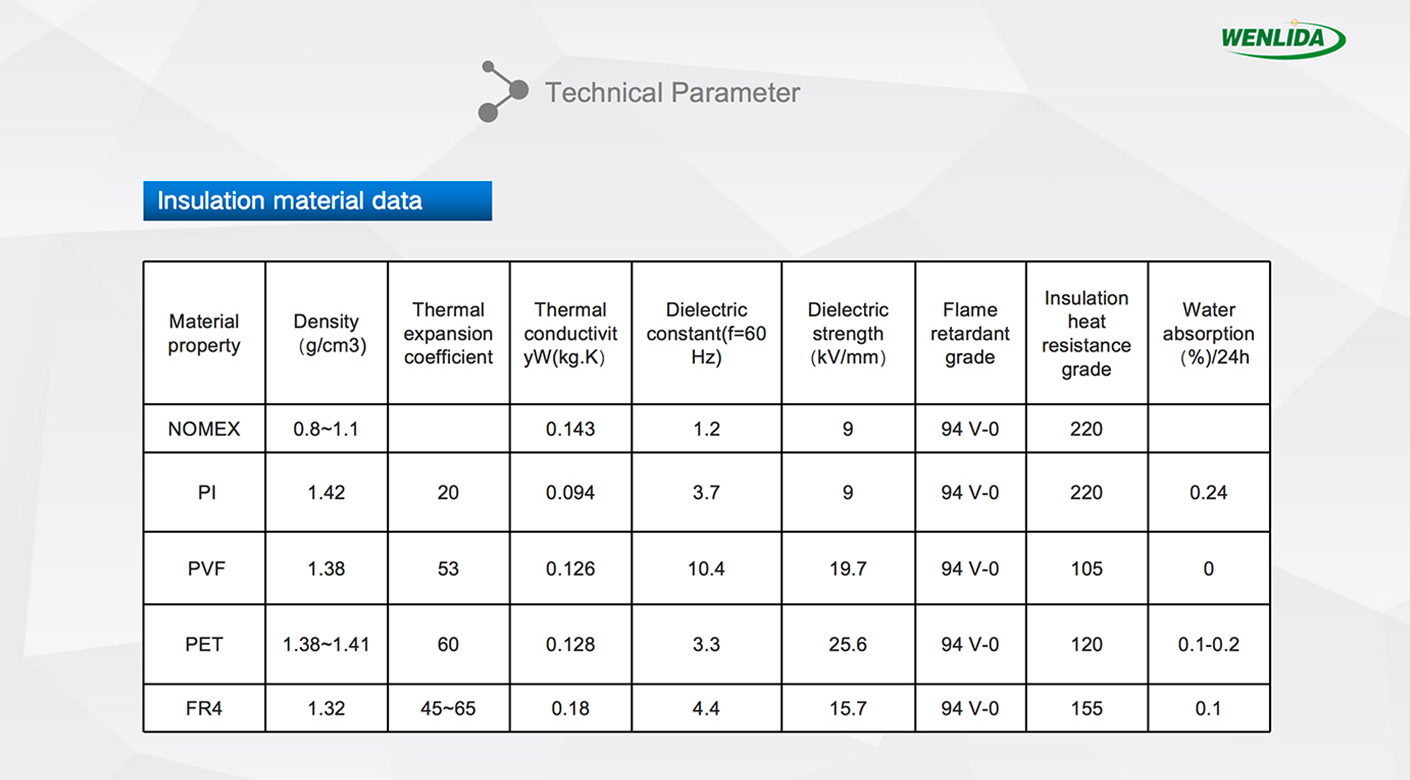

Technical Parameter

Laminated Busbar for Rail Traffic Product Data

Application Fields

Power Distribution in Rail Transportation:
- Laminated copper busbars are extensively used in rail vehicles for the distribution of electrical power to components such as traction motors, lighting systems, control systems, and other electrical devices.
Power Distribution in Electric Vehicles (EVs):
- Electric vehicles, including buses and cars, use laminated copper busbars for distributing power between the battery, electric motors, and various electronic components. They help manage high currents efficiently in the confined spaces of electric vehicles.
Power Distribution in Industrial Machinery:
- Laminated busbars are employed in industrial equipment and machinery for the distribution of power to motors, control panels, and other electrical components. Their compact design and high current-carrying capacity make them suitable for various industrial applications.
Power Distribution in Data Centers:
- Data centers utilize laminated busbars for efficient power distribution within server racks and throughout the facility. The compact and integrated design is valuable in environments where space is at a premium.
