Home / Products / Power Supply Products / Integrated Voltage Stabilizer & Transformer / Integrated Voltage Stabilizer & Transformer

Integrated Voltage Stabilizer & Transformer

SEND INQUITY

Description
Advantages
Specification
Application
Recommend

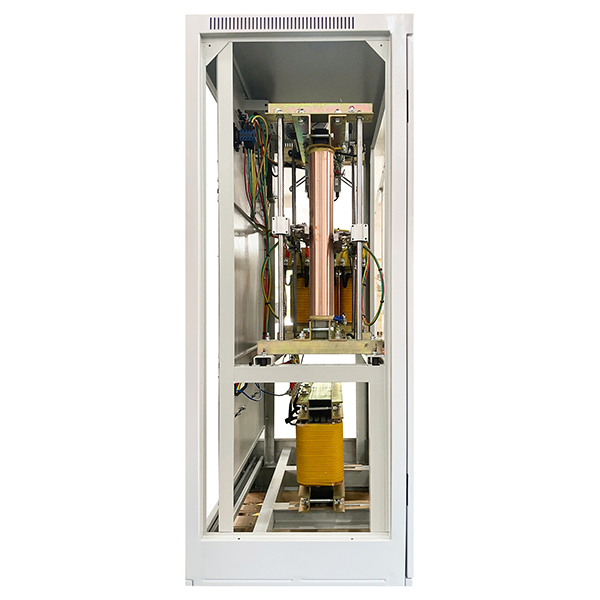

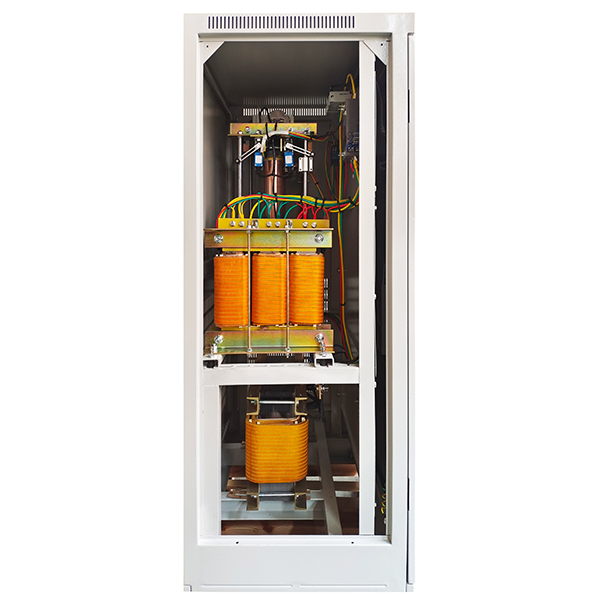

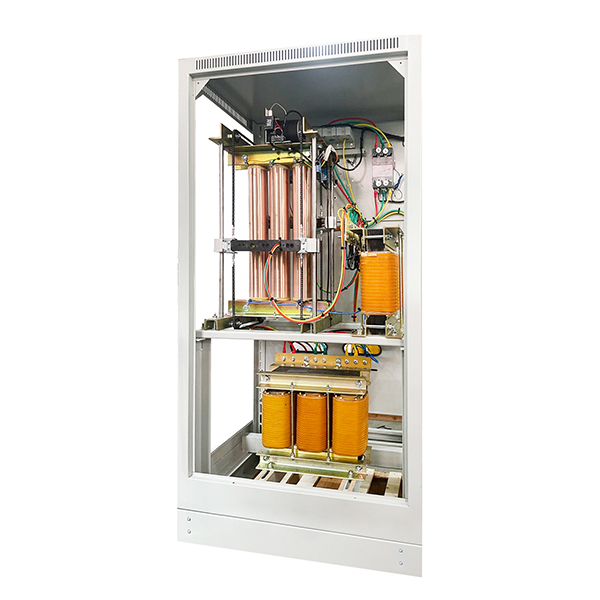

A Integrated Transformer&Voltage Stabilizer (Stable transformer integrated machine) is the voltage regulator and transformer installed in a chassis, the use of modular configuration wiring, making the stable transformer equipment in the maintenance are very convenient. And save space to reduce purchase costs and reduce line loss to provide efficiency, can withstand instantaneous high voltage, high current and harsh temperature, humidity, vibration environment. Stable transformer integrated machine is often used in imported equipment, can maintain the stable voltage accuracy and variable voltage range.

Quick Information

Efficiency:≥ 97%
Insulation resistance :≥ 2M Ω
Waveform distortion :≤ 0. 1%
Working efficiency:50Hz~60Hz

Description

An Integrated Voltage Stabilizer & Transformer (IVST), also known as a Stable Transformer Integrated Machine, is a compact and versatile device that combines a voltage regulator and transformer within a single enclosure. This modular design simplifies installation, maintenance, and reduces overall equipment costs. It offers exceptional voltage stability and can withstand harsh environmental conditions, making it ideal for use with imported equipment.

The coil, iron core, silicon steel sheet, and other transformer components are designed with modular science and rational design, and high efficiency and a wide range of industrial parts are used. The stable transformer is maintenance-free, high quality, safe, and reliable. It can withstand instantaneous high-voltage high currents and adapt to harsh temperatures, humidity, and vibration.

Advantages

1. Copper pillar can withstand instant overload.

The copper pillar is a crucial transformer component, responsible for conducting the high-current electrical energy. Copper is an excellent conductor of electricity, and its high thermal conductivity helps dissipate heat efficiently, preventing overheating and damage.

2. The servo motor can adjust speed smoothly.

A servo motor is a type of motor that provides precise and controlled motion. In the context of transformers, a servo motor is often used to adjust the transformer’s tap position, which controls the output voltage.

3. Wear-resistant carbon brushes can realize precise regulation.

Carbon brushes are used in electrical components to transfer electrical current from a rotating shaft to a stationary contact. In a transformer, carbon brushes are used in the tap changer mechanism, which allows for adjusting the transformer’s output voltage.

4. Multiple protections, such as phase sequence protection, anti-surge protection, etc., can be customized per customers’ requirements.

Transformers are susceptible to various electrical disturbances, such as phase sequence errors and voltage surges. Incorporating multiple protection features into the transformer design helps safeguard the equipment and prevent damage from these disturbances.

5. Good winding material can withstand high temperatures and voltage.

The winding is the core of a transformer, consisting of insulated wires wrapped around the transformer core. The winding material is critical to the transformer’s performance and reliability. High-quality winding materials, such as copper or aluminium, offer excellent electrical conductivity, low losses, and the ability to withstand high temperatures and voltages.

Specification

Data Sheet for Integrated Transformer&Voltage Stabilizer

Model Specifications	SBW-SG series
Rated capacity	20KVA	30KVA	40KVA	50KVA	60KVA	80KVA	100KVA
Input voltage	3Φ3W+G AC380V/220V±20%
Rated input voltage	3Φ4W+G AC380V/220V±15%
Rated Output voltage	3Φ4W+G phase voltage AC220V (line voltage AC380V)
Response time	≤ 100ms
Stabilizing time	When the input voltage jumps 10% relative to the rated value, the stabilization time is less than 1.5S.
Voltage stabilization accuracy	± (1-5)%, can be adjusted
Efficiency	≥ 97%
Insulation resistance	≥ 2M Ω
Waveform distortion	≤ 0. 1%
Working efficiency	50Hz~60Hz
Withstand voltage	2000V, 5mA, no breakdown or arcing in 1 minute
Stabilizing time	Compared with input voltage and rated voltage, stabilizing time is less than 1 5S when the input voltage jumps up 10%
Application environment	indoor, no vibration, bumps, no serious impact on the voltage regulator insulation gas, steam, chemical deposition, dust, dirt and other explosive and corrosive media.
Attitude	<2000m
Relative humidity	< 90%

Displayer	LCD displayer screen (Adopt: 1. nine channels of sampling, 2. high brightness four districts, 3 all parameters can be set on the display screen)
Over-voltage & Under-voltage protection	Output voltage is over-voltage or under-voltage, machine shall automatic start the protection function.
Over-current protection	When the current exceeds the limit of rated current value, machine shall automatically cut off the input current
Spacing protection	When the brush runs beyond the range, it automatically terminates the adjustment of voltage.
Phase sequence protection	In case of inverting phase or losing phase, machine automatically starts protection function. And then, output voltage output shall be shut down.
Overload protection	When it is overload, machine shall automatically cut off the power supply.
Short circuit protection	When the load is short circuited, machine shall automatically cut off the power supply
Bypass	During the maintenance period, machine shall manually switch from

function	stabilizing state to the mains power state.
Return to center point function	When the sampling voltage exceeds the set value, the real voltage automatically returns to the center point of rated voltage.
Real variable value sampling	High accuracy, good sensitivity, good measurement rate and frequency characteristics. High input impedance, low output impedance, wide power range, and low power consumption;
Vacuum impregnation painting	High insulation strength, good mechanical performance, low noise, corrosion resistance, and long-term service
Control chip	The MCU control chip adopts the original imported industrial grade 32-bit interface ARM chip produced by Yifa Company, which has advantages such as strong anti-interference ability, calculation speed, and high-precision AD acquisition, digital circuit control, reliable and intelligent operation.

Application

The Integrated Voltage Stabilizer & Transformer (IVST) is a versatile device that finds applications in a wide range of industries, including:

Agriculture: IVSTs provide stable voltage power for precision agriculture equipment, ensuring accurate measurements and reliable operation of sensors, irrigation systems, and other automation technologies.

Transportation: IVSTs are used in railway signalling systems, traction power distribution, and onboard electrical systems to ensure stable voltage and reliable operation of critical transportation infrastructure.

Post and Telecommunications: IVSTs are essential for maintaining a stable voltage supply in telecommunication networks, ensuring reliable signal transmission and uninterrupted communication services.

Oil Fields: IVSTs are used in oil and gas exploration equipment, including seismic sensors, monitoring systems, and data processing units, to ensure reliable operation and accurate measurements in harsh environments.

Construction Sites: IVSTs are used in temporary power distribution systems at construction sites to provide stable voltage for power tools, lighting equipment, and other electrical appliances.
